Input size: ≤375mm
Production Capacity: 150-500TPH
B6X series belt conveyors are widely used in mining, metallurgy, coal, transportation, electric power, building materials, chemical industry, light industry, food and machinery and other industries. It is a new generation of bulk material conveying equipment designed by Liming Heavy Industry based on summing up previous industry experiences and closely combining market conditions and customer needs.
Email: infosh@limingco-group.com
Fea tures
- 1. Closely combine with the market situation and the needs of customers
- 2. The component structure is simple, clear and easy for customers to maintain and operate.
- 3. Repair and replace any part (except motor) with low cost.
- 4. The fuselage structure is compact, which can reduce the height of steel frame and the overall cost of customers.
Over view

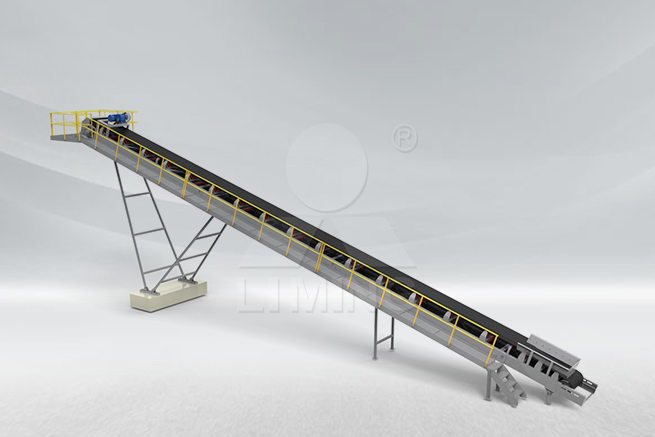

B6X belt conveyor is a bulk material conveying product, which is specially used to deal with various bulk materials with bulk density of 500~2500kg/m3.
Working Principle

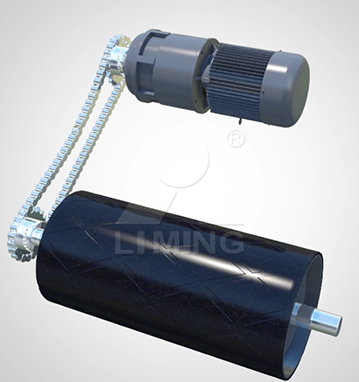

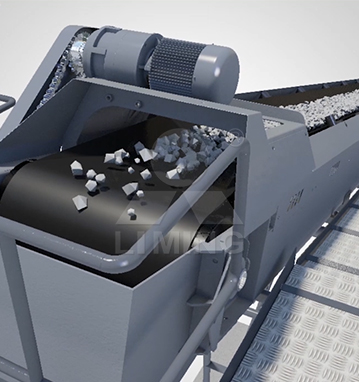

The conveyor belt is used as a traction and load-bearing to continuously convey materials through the movement of the conveyor belt. The belt forms an endless ring belt around the transmission drum and the tension drum. The upper and lower belts are supported by support roller to limit the deflection sag of belt. The tension device provides tension needed for the normal operation of the belt. When working, the driving device drives the transmission drum. The belt is driven by the friction between the driving drum and the conveyor belt. The materials are loaded on the belt and moves with it.
Spec ifications
Belt width(mm) | 500 | 650 | 800 | 1000 | 1200 |
Design parameters | Stones and aggregate Bulk density ρ=1.6t/m3 Running stacking angle θ=20° | ||||
Recommended material size (mm) | ≤150 | ≤200 | ≤300 | ≤325 | ≤375 |
Maximum conveying capacity of 17 degrees (t/h) | 150 | 150 | 250 | 350 | 500 |
Inclination angle | Limit value of inclination angle is related to material | ||||
Theoretical speed (The power value in brackets is 22kw and above) (m/s) | 1.5 | 1.6 | 1.4 | 1.4 | 1.5(1.4) |
4YKN2160 | 4x12.6 | 20 | 5~150 | 400 | 800-900 |
2YKN2460 | 2x14.4 | 20 | 5~150 | 400 | 800-900 |
3YKN2460 | 3x14.4 | 20 | 5~150 | 400 | 800-900 |
4YKN2460 | 4x14.4 | 20 | 5~150 | 400 | 800-900 |
Tightening method | Screw tightening | ||||
Length of belt conveyor (m) | 8≤L≤30 | ||||
Drive drum diameter (mm) | φ323 | φ375 | φ400 | φ424 | φ448 |
Directional drum diameter (mm) | φ271 | φ323 | φ375 | φ400 | φ424 |
Upper idler roller dimensions | φ89x200 | φ89x250 | φ89x315 | φ108x380 | φ108x465 |
Lower idler roller dimensions | φ89x600 | φ89x750 | φ89x900 | φ108x1100 | φ108x1300 |
Belt model | NN-100 4×(4+1.5) | NN-100 4×(4+1.5) | NN-100 4×(4+1.5) | NN-100 5×(5+2) | NN-100 5×(5+2) |
