Input size:
Production Capacity: 0.2-30m³/min

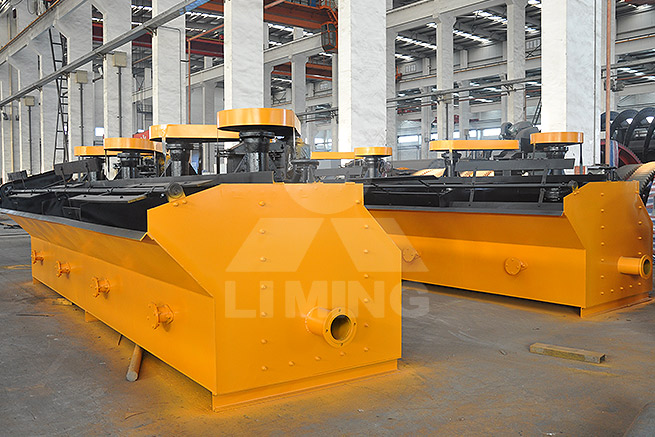

Flotation machine is widely used in gold, copper, lead and zinc, and other metals mines for useful minerals in sorting operations.Flotation machine in the impeller rotates, it produces eddy current in the vertical tube and diversion tube, the eddy current form the negative pressure, the air from the air inlet pipe, the impeller and stator zone and the nozzle inlet pulp mixing.
Email: infosh@limingco-group.com
Fea tures
- 1.High inhalation, low power.
- 2.Each chute can inhale gas, sink magma, separate.
- 3.There is no need of accessory equipment horizontal equipment, it is easy to change the flow chart.
- 4.The cycling way of magma is very reasonable, it can reduce the impurities to a great extent.
- 5.There is automatic equipment on the magma surface, it is easy to adjust.
- 6.The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.
Over view
Flotation machine is widely used in gold, copper, lead and zinc, and other metals mines for useful minerals in sorting operations.
Working Principle
Flotation machine in the impeller rotates, it produces eddy current in the vertical tube and diversion tube, the eddy current form the negative pressure, the air from the air inlet pipe, the impeller and stator zone and the nozzle inlet pulp mixing.The plasma gas flow mix the tangent direction, which is formed by the impeller is converted to radial movement under the effect of stator, and evenly distributed in flotation cell.Mineralized bubbles rise to the foam layer, scrape by scraper is the foam products.
Spec ifications
KYF flotation machinery specification:
| Model | Volume (m3) | Capacity (m3/min) | Impeller dia (mm) | Impeller revolution (r.p.m) | Air pressure of blower (KPa) | Max of air Filling (m3/m2) | motor power (kw) | |
| Impeller | Scraper | |||||||
| KYF-1 | 1 | 0.2~1 | 340 | 281 | ≥12.6 | 2 | 4 | 1.1 |
| KYF-1.2 | 1.2 | 0.2~1.2 | 410 | 247 | ≥12.8 | 2 | 7.5 | 1.1 |
| KYF-2 | 2 | 0.4~2 | 410 | 247 | ≥14.7 | 2 | 7.5 | 1.1 |
| KYF-3 | 3 | 0.6~3 | 480 | 219 | ≥19.8 | 2 | 7.5 | 1.5 |
| KYF-4 | 4 | 1.2~4 | 550 | 200 | ≥19.8 | 2 | 11 | 1.5 |
| KYF-8 | 8 | 3~8 | 630 | 175 | ≥21.6 | 2 | 15 | 1.5 |
| KYF-16 | 16 | 4~16 | 740 | 160 | ≥25.5 | 2 | 30 | 1.5 |
| KYF-24 | 24 | 4~24 | 800 | 150 | ≥30.4 | 2 | 30 | 1.5 |
| KYF-38 | 38 | 10~38 | 880 | 138 | ≥34.3 | 2 | 37 | 1.5 |
