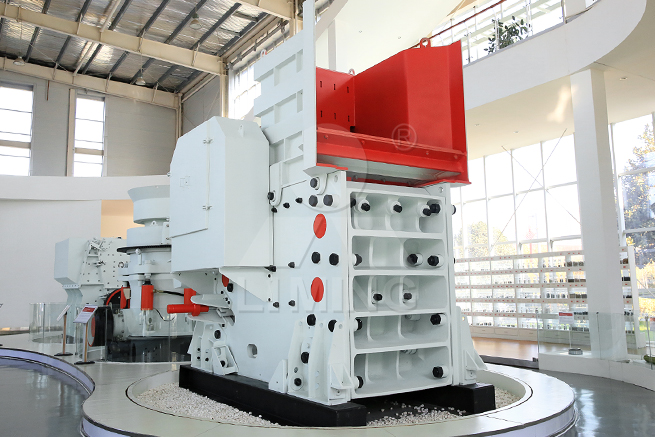

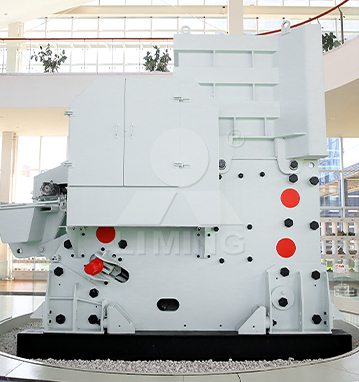

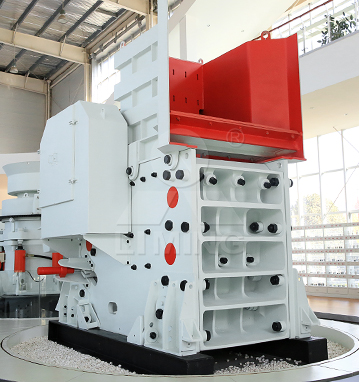

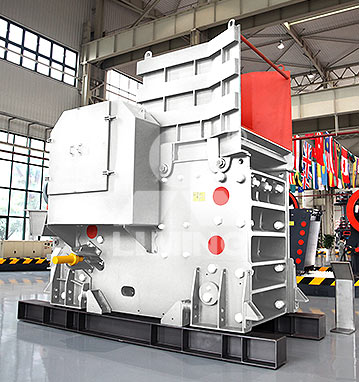

C6X Jaw Crusher
C6X Series Jaw Crusher

Input size: 0-450mm

Production Capacity: 160-1500TPH

C6X Series Jaw Crusher is new equipment widely used for hard and strong materials.1.Adopting elastic position limiters and rubber damping to absorb vibration load, reducing the impact that influences other components to improve the service life.As the source of power, motor drives pulley and makes the movable jaw doing periodic movement through eccentric shaft.

Email: infosh@limingco-group.com

C6X Series Jaw Crusher

Fea tures

    • 1.Adopting elastic position limiters and rubber damping to absorb vibration load, reducing the impact that influences other components to improve the service life.
    • 2.Adopted separated designs of side walls, front and back walls for frame, replaced welded machine with bolted fastening, the plant is more stable.
    • 3.Improving the chamber’ s structure, optimizing trajectory parameters of moving jaw, the equipment takes advantages of larger crushing stroke and higher production efficiency.
    • 4.It is convenient to adjust the discharge opening by replacing plates with wedges.
    • 5.Choosing superior materials made by international manufacturers to ensure the quality of equipment.
    • 6.Integrative motor cabinet reduces mounting space.

Over view

C6X Series Jaw Crusher is new equipment widely used for hard and strong materials. By means of the structural improvement about bolted fastening, chamber and wedge, the plant takes advantages of excellent performance and high efficiency, which can reduce the cost for customers effectively. As ideal equipment for primary crushing, C6X Series Jaw Crusher is widely used in mining, chemical, cement, construction, refractory material, ceramics, etc. industry.

Working Principle

As the source of power, motor drives pulley and makes the movable jaw doing periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when the movable jaw moves up;Then the movable jaw is close to the fixed jaw. The stone is crushed in this process. The angle of jaw crusher between toggle plate and the movable jaw decreases when the movable jaw moves down, the movable jaw of jaw crusher moves away from fixed jaw by the pulling of rod and spring, the materials that meeting requirement is discharged from the outlet of jaw crusher.

Spec ifications

Model C6X80 C6X100 C6X110 C6X125 C6X145 C6X160 C6X200
Feed opening length(mm) 800 1000 1100 1250 1450 1600 2000
Feed opening width(mm) 520 760 850 950 1100 1200 1500
Power KW(Kw) 75 110 160 160 200 250 400
Speed(rpm) 350 260 230 220 220 220 200
Dimension(mm) Discharge opening(mm) T/h T/h T/h T/h T/h T/h T/h
0-90 60 80-110
0-105 70 100-135 130-180
0-120 80 110-150 150-200 160-240
0-135 90 130-175 170-220 180-260
0-150 100 145-190 190-250 200-280 240-340
0-185 125 180-245 230-310 250-360 280-410 320-470
0-225 150 225-290 280-360 300-430 340-480 370-550 420-610
0-260 175   330-420 340-490 370-550 430-630 470-700 620-890
0-300 200     380-550 420-620 480-710 530-790 690-1000
0-340 225       470-690 540-790 590-880 770-1100
0-375 250       520-760 600-870 650-970 850-1200
0-410 275         660-950 700-1060 930-1300
0-450 300           750-1100 1000-1500

Notice:
1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.
