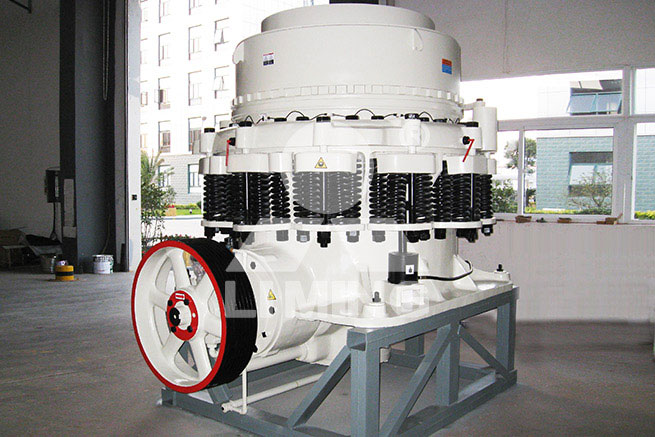

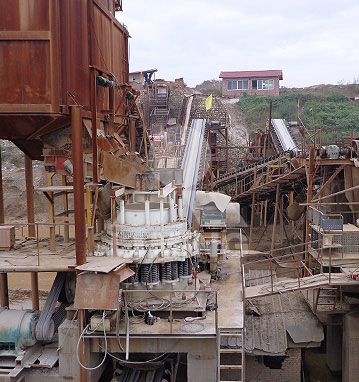

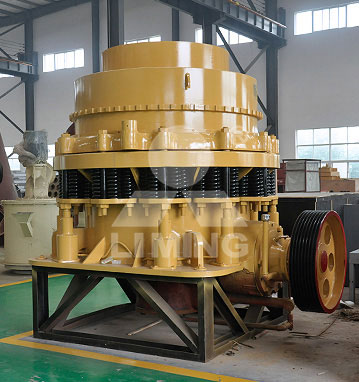

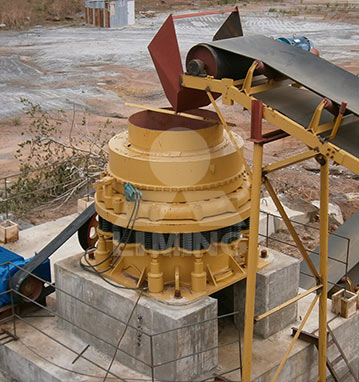

CS Series Cone Crusher
CS Series Cone Crusher

Input size: Up to 268mm

Production Capacity: 27-635T/h

CS Series cone crusher is widely used to crush metalliferous minerals and non-metalliferous minerals, cement, construction aggregate and sand. For example, iron ore, granite, silica sand, river stone etc. Optimal design of chamber type, together with reasonable combination of speed and stroke make the crusher work more under same dynamic cone diameter. It shows high performance, manufacturing capacity with high reliability and easy-maintenance and low cost.

Email: infosh@limingco-group.com

CS Series Cone Crusher

Fea tures

    • 1.High Performance
      Optimal design of chamber type, together with reasonable combination of speed and stroke make the crusher work more under same dynamic cone diameter. It shows high performance, manufacturing capacity with high reliability and easy-maintenance and low cost.
    • 2.Good Stability
      If there is any metal or other non-broken material comes into the crushing chamber, metal passing protection device can release it quickly and the discharge gate resets automatically.
    • 3.Convenient Cleaning-up
      The hydraulic cleaning system can clean up the crushing chamber quickly under the load condition in case to decrease the downtime.
    • 4.High reliability
      The adoption of big diameter main shaft, heavy mainframe and automatic control of independent oil lubrication system ensure its durability and reliability.
    • 5.Convenient maintenance and easy operation
      Under high impact and vibration environment, bronze sliding bearing can keep excellent load performance. It is much more economic and easier for maintenance than the rolling bearing.
    • 6.Double oil passages lubrication and separate oil lubrication system can guarantee dual protection to the lubrication bearings and the safety of the whole crusher.
    • 7.Convenient adjustment of discharge opening
      Discharge opening adjustment with hydraulic drive cylinder can reduce consumption.

Over view

According to customers ’requirement, our company designs high-performance crusher, CS Series High-efficiency Spring Cone Crusher. This crusher concentrates on the specialty of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.

CS Series cone crusher is widely used to crush metalliferous minerals and non-metalliferous minerals, cement, construction aggregate and sand. For example, iron ore, granite, silica sand, river stone etc.

Working Principle

Through the v-belts, pulley, transmission shaft, pinion and the bevel gear, the power will be transmitted from the electrical motor to the eccentric bushing. Thus the eccentric bushing begins to rotate, which will generate the friction force to drive the main shaft rotating and wigging. Therefore, part of the mantle approaches the bowl liner to crush the material, while the other part of the mantle is a little bit far from the bowl liner, between which the crushed products of required size will be discharged from the lower part after repeating crushing, extruding and bending.

Spec ifications



Model Dia. mm (feet) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
CSB75 900 (3') Fine 83 102 9-22 580 75(100) 45-91 12.2 2821×1880×2164
Coarse 159 175 13-38 59-163
CSB160 1295 (4 1/4') Fine 109 137 13-31 485 185(250) 109-181 23.8 2800×2342×2668
Medium 188 210 16-31 132-253
Coarse 216 241 19-51 172-349
CSB240 1650 (5 1/2') Fine 188 209 16-38 485 240(320) 181-327 55 3911×2870×3771
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
Model Dia. mm (feet) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/hour) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
CSD75 914 (3') Fine 13 41 3-13 580 75(100) 27-90 12.2 2821×1880×2410
Coarse 33 60 3-16 27-100
CSD160 1295 (4 1/4') Fine 29 64 3-16 485 160(220) 36-163 23.8 2800×2342×2668
Medium 54 89 6-16 82-163
Coarse 70 105 10-25 109-227
CSD240 1676 (5 1/2') Fine 35 70 5-13 485 240(320) 90-209 55 3917×2870×3771
Medium 54 89 6-19 136-281
Coarse 98 133 10-25 190-336
