Input size:
Production Capacity:
Tertiary Crushing And Washing Plant is a suitable choice for sand making in construction and road-building. Equipped with 2 kinds of VSI series, 2 kinds of VSI5X series and 4 kinds of high-efficiency cone crusher with fine cavity respectively,Equipped with vertical shaft impact crusher which has advantages of high performance, large crushing ratio and powerful crushing.A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs.
Email: infosh@limingco-group.com
Fea tures
- 1.Equipped with vertical shaft impact crusher which has advantages of high performance, large crushing ratio and powerful crushing.
- 2.Excellent product shape
- 3.Application from one single mobile plant to multiply combined plants
- 4.Optional switch for host to satisfy customer's need
- 5.Quick opening process with flexible parking function
Over view
Tertiary Crushing And Washing Plant is a suitable choice for sand making in construction and road-building. And the plant equipped screw sand washing machine is used for washing, grading and cleaning in metallurgy, construction, hydropower industry, etc.
Equipped with 2 kinds of VSI series, 2 kinds of VSI5X series and 4 kinds of high-efficiency cone crusher with fine cavity respectively, Tertiary Crushing And Washing Plant with a maximum capacity of 280t/h can satisfy customers’ different requirements.
Working Principle
A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs. In a short time, crushers with different models are interchangeable in the same mobile crusher. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.
Spec ifications
Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
Model | Model | Max. Feeding Size(mm) |
output (t/h) |
Transport dimension (need tear-down) | |||

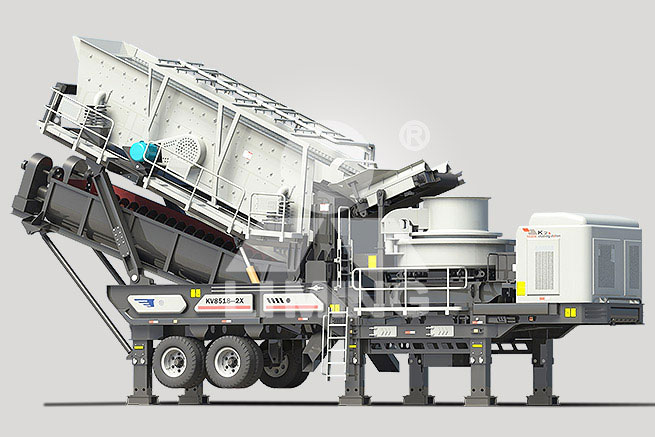

KV8518-2X | 3YZS1848 | VSI8518 | 35 | 100-130 | 120-150 | 13700×2950×4500(mm) | 52 |
XL-915 | |||||||
KV8522-2X | 3YZS1860 | VSI5X8522 | 35 | 120-200 | 140-230 | 13700×2950×4500(mm) | 55 |
2XL-915 | |||||||
KV9526-2X | 3YZS1860 | VSI9526 | 40 | 150-190 | 170-220 | 13700×2950×4500(mm) | 58 |
2XL-915 | |||||||
KV9532-2X | 3YZS1860 | VSI5X9532 | 40 | 180-280 | 200-300 | 13700×2950×4500(mm) | 59 |
2XL-915 | |||||||
KC75-2X | 3YZS1848 | CS75B | 102-175 | A | A+(20~50) | 13700×2950×4500(mm) | 53 |
XL-915 | |||||||
KC160-2X | 3YZS1860 | CS160B | 168-192 | A | A+(20~50) | 13700×2950×4500(mm) | 68 |
XL-915 | |||||||
KH300-2X | 3YZS1860 | HPT300 | 84-168 | A | A+(30~70) | 13700×2950×4500(mm) | 59 |
2XL-915 | |||||||
KT250-2X | 3YZS1860 | HST250H1 | 88-360 | A | A+(30~70) | 13700×2950×4500(mm) | 58 |
2XL-915 |
