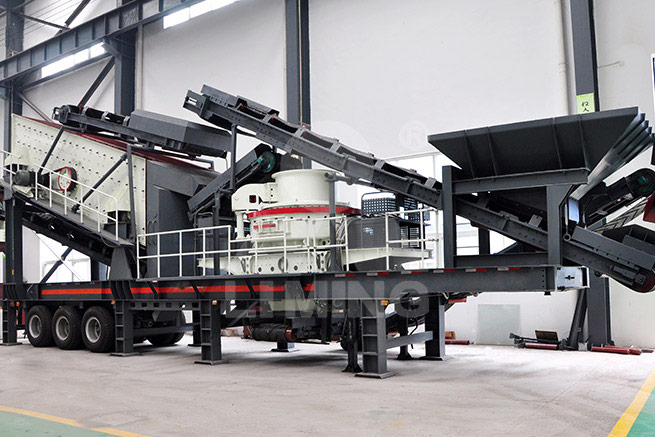

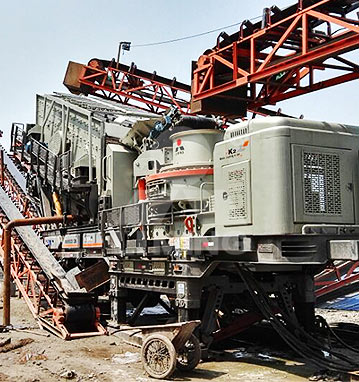

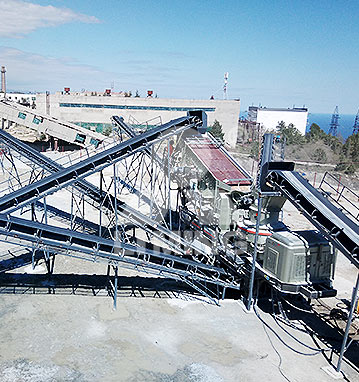

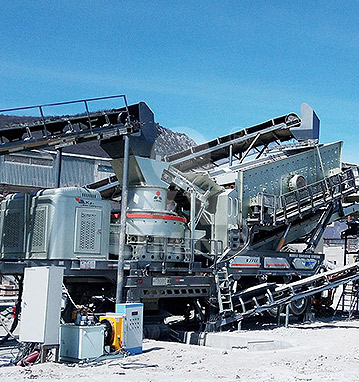

Mobile Vertical Shaft Impact Crusher
Mobile Vertical Shaft Impact Crusher

Input size: 35-360mm

Production Capacity: 120-300T/h

VSI Series Vertical Shaft Impact Crusher is the first choice for the artificial sand making industry, which adopts world-level manufacturing technology. Equipped with 2 kinds of VSI series and 2 kinds of VSI5X series respectively, VSI Shaping And Screening Plant has the advantages of well-distributed final product size and high capacity up to 280t/h.A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs.

Email: infosh@limingco-group.com

Mobile Vertical Shaft Impact Crusher

Fea tures

    • 1.Equipped with vertical shaft impact crusher which has advantages of high performance, large crushing ratio and powerful crushing.
    • 2.Excellent product shape in cubic
    • 3.Application from one single mobile plant to multiply combined plants
    • 4.Optional switch for host to satisfy customer's need
    • 5.Quick opening process with flexible parking function

Over view

VSI Series Vertical Shaft Impact Crusher is the first choice for the artificial sand making industry, which adopts world-level manufacturing technology. VSI5X Efficient Vertical Shaft Impact Crusher is recognized as the new generation product owning many patents, which combines professional crushing technics and mechanical manufacturing together.

Equipped with 2 kinds of VSI series and 2 kinds of VSI5X series respectively, VSI Shaping And Screening Plant has the advantages of well-distributed final product size and high capacity up to 280t/h.

Working Principle

A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs. In a short time, crushers with different models are interchangeable in the same mobile crusher. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.

Spec ifications

Model Feeding Equipment Crushing Equipment Max. preparedness capacity(t/h) Overall Dimension Weight (t)
Model Model Max. Feeding Size(mm) output
(t/h)
Transport dimension (need tear-down)
KV8518-2 3YZS1848 VSI8518 35 100-130 120-150 14200×3000×4500(mm) 41
KV8522-2 3YZS1860 VSI5X8522 35 120-200 140-230 14200×3000×4500(mm) 45
KV9526-2 3YZS1860 VSI9526 40 150-190 170-220 14200×3000×4500(mm) 48
KV9532-2 3YZS1860 VSI5X9532 40 180-280 200-300 14200×3000×4500(mm) 49
