Gold ore Crusher

Gold ores containing gold and some metal impurities exploited artificially or automatically. They can become gold concentration or gold placer by beneficiation. And only gold concentration is smelted, can it become refined gold or gold products.

C6X Series Jaw Crusher

☆Superior and excellent quality
☆Reasonable moment of inertia
☆Double wedge adjusting device

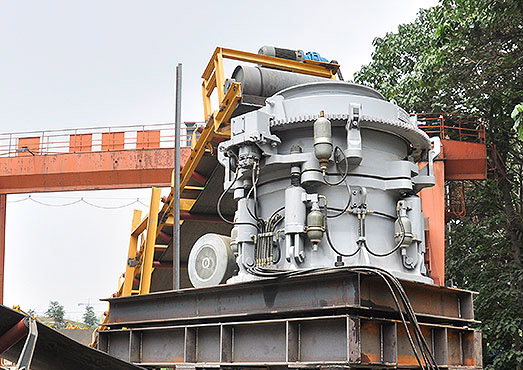

HPT Hydraulic Cone crusher

☆The capacity is improved remarkably
☆The whole production is energy-efficient
☆Production running is stable and security

VSI Sand Making Machine

☆Exclusive feeding crushing structure
☆Many kinds of crushing chamber
☆“Crushing between materials” or “crushing between materials and liners”

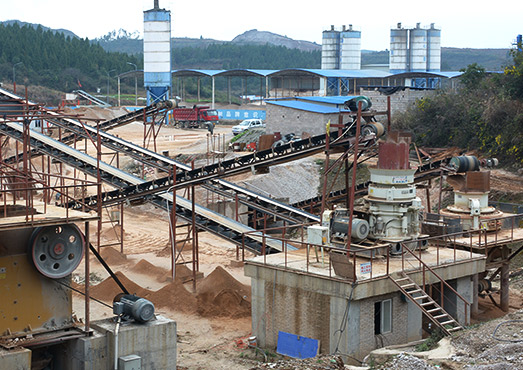

Big gold ores from storage bin flows into vibrating feeder which will send them to jaw crusher for coarse crushing. Then gold ores will go to cone crusher for medium crushing with belt conveyor. After medium crushing, vibrating screen will screen large sizes of ores out in order to make them crushed again in cone crusher, but required ores will be sent to sand making machine for shaping, and then final products are sent out by belt conveyor.

Final products size: 0-40mm
Capacity: 80-120tph
Equipment: Vibrating Feeder GZD960×3800, Vibrating Feeder GZG80-4, PE Series Jaw Crusher PE600×900, Cone Crusher CSB75 (C), Sand Making Machine VSI8518, Vibrating Screen 2YZS1848, Vibrating Screen 3YZS1860
