Input size:
Production Capacity:

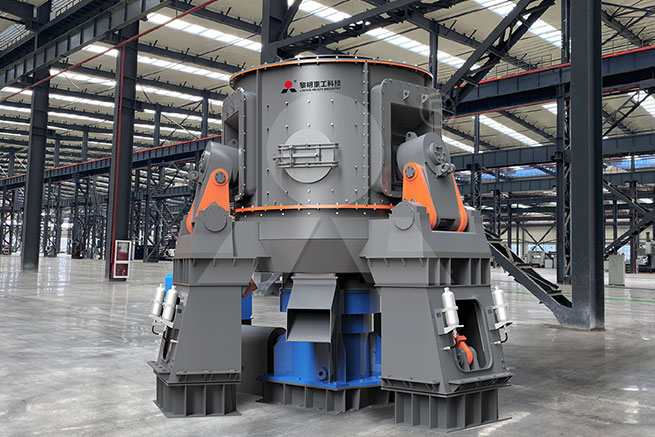

LM series sand powder vertical mill, also known as pre-grinding mill, is a large-scale high-efficiency and energy-saving sand powder preparation product developed by Liming Heavy Industry in combination with its own more than 30 years of research and development and manufacturing experience.
Email: infosh@limingco-group.com
Fea tures
- 1. Sand and powder are produced at the same time, one machine with multiple functions LM sand powder vertical mill can realize sand and powder output at the same time, one machine with multiple functions.
- 2. LM sand powder vertical mill solves the industry pain points of low yield and high energy consumption of conventional sand making equipment, and subversively realizes the ideal preparation of high-quality graded sand for special mortar.
- 3. The gradation of the finished sand powder is adjustable and controllable, and the added value of the product is high.
- 4. High production efficiency, low operating cost, simple operation, convenient maintenance, energy saving and environmental protection.
Over view
It has a number of independent patented technologies and intellectual property rights. The main technology and economic indicators have reached the international advanced level.
Working Principle
The main motor drives the grinding disc to rotate through the reducer, and the material falls from the feeding port to the center of the grinding disc. Under the action of centrifugal force, the material moves uniformly from the center of the grinding disc to the edge and passes through the crushing roller area on the grinding disc, and is crushed by the grinding roller. The bulk material is directly crushed, and the fine-grained material is squeezed to form a material bed for intergranular crushing. The crushed material continues to move towards the edge of the grinding disc until it is thrown out of the grinding disc by the centrifugal force of the grinding disc, falls to the lower chamber of the mill, and is scraped into the discharge port by the scraper installed at the bottom of the grinding disc and then outside of the mill. The material is sorted in the external sorting or separation equipment, and the bulk or large particle material that exceeds the particle size of the finished product is recirculated into the mill for re-grinding until it reaches the appropriate particle size.
Spec ifications
| Model | LM19-2Y | LM22-2Y | LM24-2Y | LM27-2Y | LM27-3Y | LM31-2Y | LM31-3Y | LM34-2Y | LM34-3Y | LM37-3Y | LM39-4Y | LM44-4Y | LM50-4Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Feeding size (mm) | <<30 | <<35 | <<45 | <<50 | <<55 | ||||||||
| Moisture content (%) | <≤3% | ||||||||||||
| Processing capacity (t/h) | 30-80 | 35-120 | 40-150 | 50-200 | 55-220 | 65-250 | 80-300 | 120-450 | 130-500 | 140-550 | 160-600 | 240-700 | 300-900 |
| Output fineness (≤0,08 mm) | <≥25% | ||||||||||||
| Output fineness (≤3mm) | <≥80% | ||||||||||||
Notes: Material grindability (Bond) index≤18kwh/t
