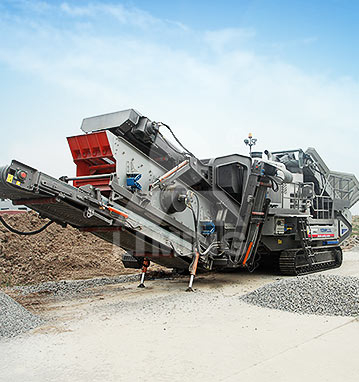

Crawler Type Mobile Crushing Plant
Crawler Type Mobile Crushing Plant

Input size: 480-940mm

Production Capacity: 90-650T/h

The crawler type mobile crushing plant adopts hydraulic driven crawler chassis to load crushing and screening equipment.The crawler type mobile crushing plant, a serialization equipment for rocks and construction waste, extending the concept of coarse crushing, fine crushing.The crawler chassis adopts ship-shaped structure, owns strength of high intensity, low ground pressure ratio, and terrific passing ability. It has great flexibility to cross over hilly and wet terrain.

Email: infosh@limingco-group.com

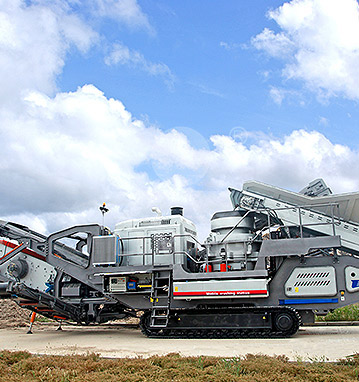

Crawler Type Mobile Crushing Plant

Fea tures

    • 1.Excellent power engine. The crawler crushing plant adopts Commins diesel engine with economic oil consumption, quiet and stable performance under working condition. It provides a reliably, economically, and environment friendly power source. It is available to add military preheating starter on plant, which enables the plant easily start under -25℃ low temperature.
    • 2.Solid crawler chassis. The crawler chassis adopts ship-shaped structure, owns strength of high intensity, low ground pressure ratio, and terrific passing ability. It has great flexibility to cross over hilly and wet terrain.
    • 3.Powerful hydraulic motor. The hydraulic motor is technically matured, provides the plant powerful driving force with great reliability. The driving system applied total-power variable open hydraulic system, has superior performance and stability under working, and it takes full utilization of engine power. The main hydraulic elements such as pump and valve are imported from Japan.
    • 4.Easy operating system. The servo guide operating system is imported, makes operation simple and convenient. The intelligent system ensures accurate control, and makes the plant move with infinitely variable speeds.
    • 5.High efficiency equipment. Crushing and screening equipment utilizes our company independent produced equipment. The on-board equipment is with compact structure and remarkable performance. The screening equipment adopts 20°dip angle, and its screening productivity is fully efficient.

Over view

The crawler type mobile crushing plant adopts hydraulic driven crawler chassis to load crushing and screening equipment. Our company independent has researched the product according to market requirement, and owns the total intellectual property rights. This plant has exceeded international advanced standard by the advantage of excellent performance, remarkable reliability and streamlined structure.

Working Principle

The crawler type mobile crushing plant, a serialization equipment for rocks and construction waste, extending the concept of coarse crushing, fine crushing. Standing on the customers’ position, the plant removes obstacles such as field, surroundings, etc. unfavorable factors which influence crushing. The crawler type mobile crushing plant aims to provide convenient, high-efficiency, low-cost installation for customers based on the materials crushed at its closest. According to requirements of different crushing processes, you can choose the procedure called “crush first and then screen” or “screen first and then crush”. Mobile crushing plant is flexible in use, it can try its best to satisfy customers’ demands.

Spec ifications

Series Standard Model Feeding equipment Crushing equipment Transportation Dimension(mm) Weight (ton)( Approximately)
Model Model  Disassembly L×W×H
Crawler type mobile jaw/impact crusher YG935E69L GZD960×3600 PE600×900 12450X2800X3800 40
YG1139EW760L GZD1100×3900 PEW760 13460X3000X3800 50
YG1345HJ110L GZD1300×4500 HJ110 14212X3000X3800 50
YG1345EW860L GZD1300×4500 PEW860 14827X3000X3800 63
YG1139FW1214IIL GZD1100×3900 PFW1214II 13913X3000X3750 50
YG1345FW1315IIL GZD1300×4500 PFW1315II 14340X3000X3800 63
Series   Standard Model Feeding equipment Crushing equipment Transportation Dimension(mm) Weight (ton)( Approximately)
Model Model  Disassembly   L×W×H
Crawler type cone crusher plant YHST16L GLD-10*4.5 HST160H1 12000x2800x3493 35
YHST25L GLD-12*4.8 HST250 14766x3000x3700 50
YHPT300L GLD-12*4.8 HPT300 14800x3000x3700 50
Series Standard Model Feeding equipment Crushing equipment Transportation Dimension(mm) Weight (ton)( Approximately)
Model Model  Disassembly   L×W×H
Crawler type mobile screening plant Y2S1860AL GLD-14/5.25  2YZS1860 17800X3200X3700 36.5
Y3S1860BL GLD-12/3 3YZS1860 17000X3300X3600 38
Y3S1848BL GLD-12/3.8 3YZS1848 17000X3300X3600 36
Y2S1848BL GLD-12/3.8 2YZS1848 17000X3300X3500 34
