Input size: 52-360mm
Production Capacity: 70-450T/h

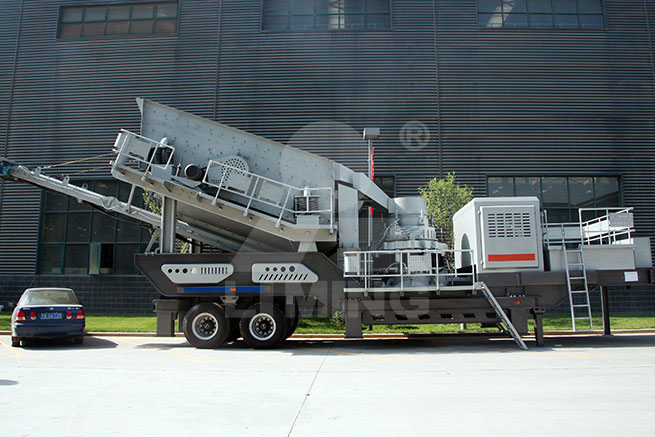

In your applications, the mobile crusher equipped with high-efficiency CS, HST, or HPT series cone crusher can make your stone crushing plat high efficiency, high crushing ratio and well-distributed final product size. Combining high-speed, long strokes and perfect crushing chamber together, CS, HST, or HPT series cone crusher are better than old-fashioned cone crusher in functions, capability, efficiency and quality.There are crushing unit interchange system and screening unit interchange system to meet different requirements.
Email: infosh@limingco-group.com
Fea tures
- 1.Application from one single mobile plant to multiply combined plants
- 2.Equipped with high-efficiency and large capacity single cylinder cone crusher newly
- 3.Reliable host for fine crushing
- 4.Lager capacity because of adjustable angle of the vibrating screening
- 5.Optional switch for host to satisfy customer's need
- 6.Quick opening process with flexible parking function
Over view
In your applications, the mobile crusher equipped with high-efficiency CS, HST, or HPT series cone crusher can make your stone crushing plat high efficiency, high crushing ratio and well-distributed final product size. Combining high-speed, long strokes and perfect crushing chamber together, CS, HST, or HPT series cone crusher are better than old-fashioned cone crusher in functions, capability, efficiency and quality.
There are 9 types of cone crushers and 6 types of impact crushers you can choose for mobile crushing, whose final products are good shape. Equipped with vibrating screen, the mobile crusher can screen suitable materials and deliver them into the next crushing segment. When customers need cone crusher used in medium crushing or fine crushing in the second or third crushing segment, CS, HST, or HPT series cone crusher can be chose in order to meet their requirements. Besides, A+t/h is the largest preparedness capacity of K series Secondary Crushing And Screening Plant.
Working Principle
There are crushing unit interchange system and screening unit interchange system to meet different requirements. That is to say, in a short time, crushers with different models are interchangeable in the same mobile crusher, and so are vibrating screens. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.
Spec ifications
| Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
| Model | Model | Max. Feeding Size(mm) |
output (t/h) |
Transport dimension (need tear-down) | |||
| KC75-2 | 3YZS1848 | CS75B | 102-175 | A | A+(20~50) | 12600×3000×4500(mm) | 41 |
| KC160-2 | 3YZS1860 | CS160B | 168-192 | A | A+(30~70) | 13800×3000×4500（mm) | 59 |
| KT100-2 | 3YZS1848 | HST100H1 | 52-192 | A | A+(20~50) | 12600×3000×4500（mm) | 32 |
| KT160-2 | 3YZS1860 | HST160H1 | 72-288 | A | A+(30~70) | 13800×3000×4500（mm) | 41 |
| KT250-2 | 3YZS1860 | HST250H | 88-360 | A | A+(30~70) | 13800×3000×4500（mm) | 49 |
| KT250-2 | 3YZS2160 | HST250H | 88-360 | A | A+(40~90) | 13800×3000×4500(mm) | 53 |
| KH300-2 | 3YZS1860 | HPT300C2 | 84-168 | A | A+(30~70) | 13800×3000×4500（mm) | 50 |
| KH300-2 | 3YZS2160 | HPT300C2 | 84-168 | A | A+(40~90) | 13800×3000×4500(mm) | 54 |
| KH300-2 | 4YZS2160 | HPT300C2 | 84-168 | A | A+(20~80) | 13800×3150×4200(mm) | 56 |
| KF1214-2 | 3YZS1860 | PF1214 | 300 | 90-180 | 120-240 | 13800×3000×4500(mm) | 53 |
| KF1214-2 | 3YZS1860 | PFW1214Ⅲ | 250 | 90-190 | 120-250 | 13800×3000×4500(mm) | 50 |
| KF1315-2 | 3YZS2160 | PF1315 | 300 | 120-250 | 150-320 | 13800×3150×4500(mm) | 62 |
| KF1315-2 | 3YZS2160 | PFW1315Ⅲ | 300 | 150-280 | 180-350 | 13800×3150×4500(mm) | 60 |
| KF1315-2 | 4YZS2160 | PFW1315Ⅲ | 300 | 150-280 | 150-280 | 13800×3150×4500(mm) | 62 |
| KF1318-2 | 3YZS2160 | PFW1318Ⅲ | 300 | 220-350 | 250-430 | 13800×3150×4500(mm) | 66 |
| KS1848-1 | 3YZS1848 | 50-250 | 70-300 | 12590×3000×4500（mm） | 26 | ||
| KS1860-1 | 3YZS1860 | 60-320 | 70-350 | 13800×3000×4500（mm） | 27 | ||
| KS2160-1 | 3YZS2160 | 80-400 | 90-450 | 13800×3000×4200（mm） | 31 | ||
